TREK Checkpoint ALR 5 Gen 3

Name: TREK Checkpoint ALR 5 Gen 3
Brand: Trek
SKU: 197216175858
Price: 3799.0 NZD
Availability: InStock

$3,799.00

Tax included.

{"id":46411787108537,"title":"Bronze Age \/ Med","option1":"Bronze Age","option2":"Med","option3":null,"sku":"197216175858","requires_shipping":true,"taxable":true,"featured_image":{"id":40322109472953,"product_id":8401645404345,"position":5,"created_at":"2026-02-25T16:14:21+13:00","updated_at":"2026-02-25T16:14:49+13:00","alt":null,"width":638,"height":505,"src":"\/\/northlandebikes.co.nz\/cdn\/shop\/files\/TREK_Checkpoint_Packed.png?v=1771989289","variant_ids":[46411787075769,46411787108537,46411787141305]},"available":true,"name":"TREK Checkpoint ALR 5 Gen 3 - Bronze Age \/ Med","public_title":"Bronze Age \/ Med","options":["Bronze Age","Med"],"price":379900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":31697887985849,"position":5,"preview_image":{"aspect_ratio":1.263,"height":505,"width":638,"src":"\/\/northlandebikes.co.nz\/cdn\/shop\/files\/TREK_Checkpoint_Packed.png?v=1771989289"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

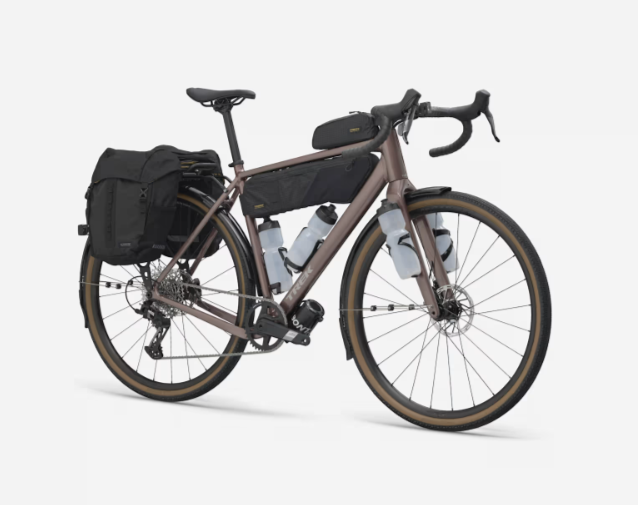

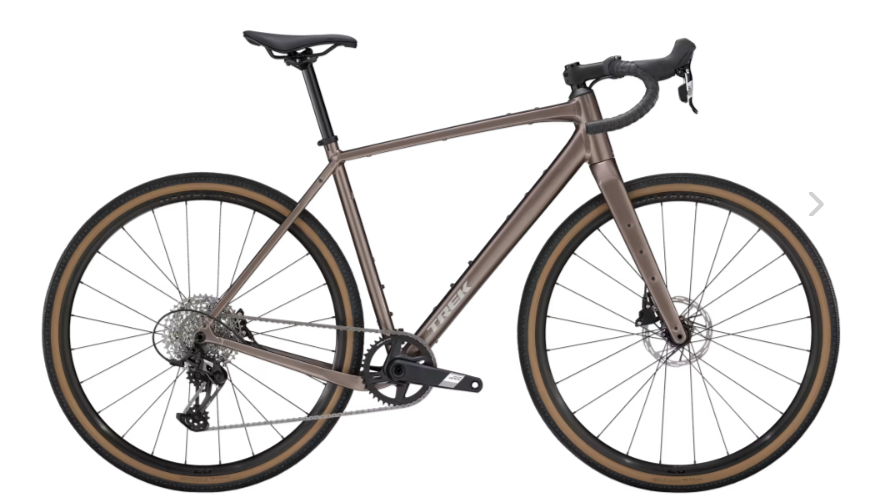

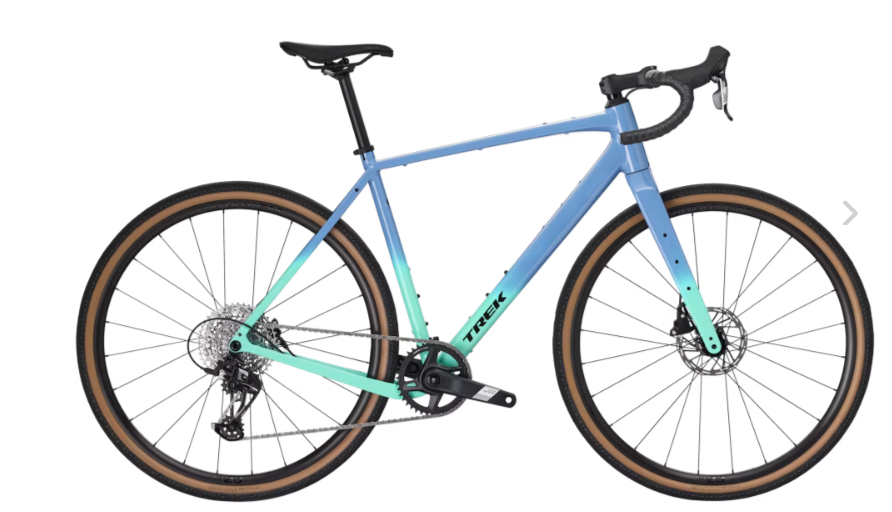

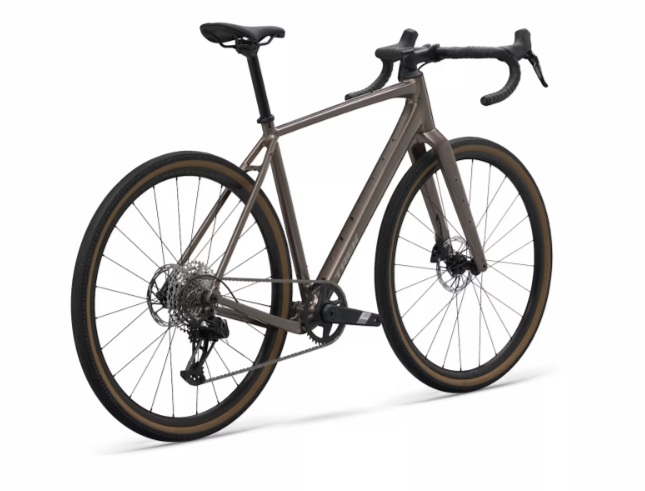

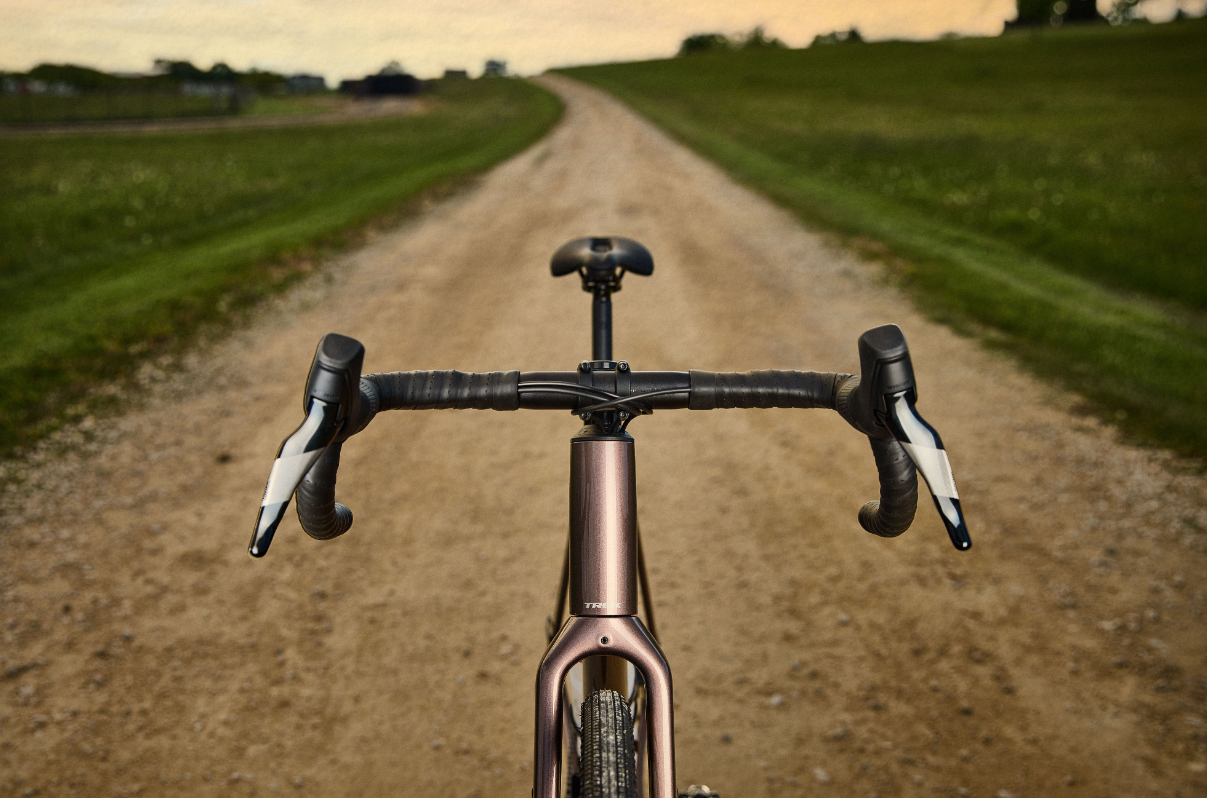

The Checkpoint ALR 5 is an aluminium gravel bike built for venturing anywhere. It pairs modern endurance geometry with a carbon fork for road-smoothing comfort, while 50 mm of tyre clearance gives you room for tons of grip. It comes equipped with SRAM Apex XPLR 12-speed shifting, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels and loads of mounts for bags and gear.

You Tube Overview

SPECIFICATIONS

Frame - 300 Series Alpha Aluminium, Internal cable routing, 3S chain keeper, T47, UDH, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm chamfered thru axle

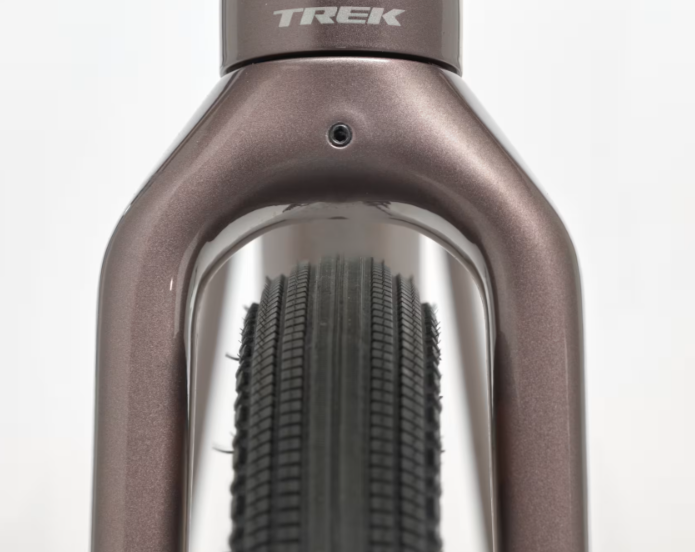

Fork - Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight - (ML) 9.9 kg
Weight limit - This bike has a maximum total weight limit is 125 kg.

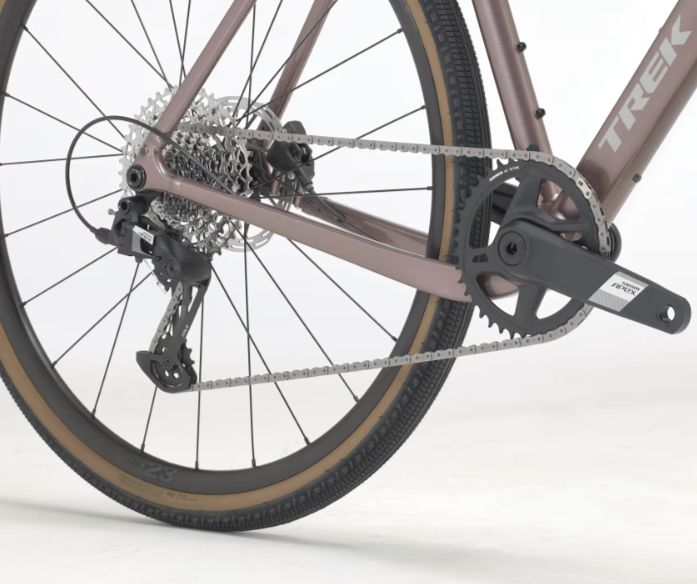

Shifter - SRAM Apex, 12 speed
Rear derailleur - SRAM Apex XPLR, 44T max cog

Bottom bracket - SRAM DUB Wide, T47 threaded, internal bearing
Cassette - SRAM XPLR PG-1231, 11-44, 12-speed
Chain - SRAM Apex, 12-speed
Max. chainring size - 1x:44 2x: 46/30

Hub front - Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
Skewer front - Bontrager Switch chamfered thru axle
Hub rear - Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear - Bontrager Switch chamfered thru axle, removable lever
Rim - Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes - 14 g stainless steel, black
Tyre - Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Max tyre size - 50 mm without mudguards, 42 mm with mudguards

Saddle - Verse Short Comp, steel rails, 145 mm width
Seatpost - Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

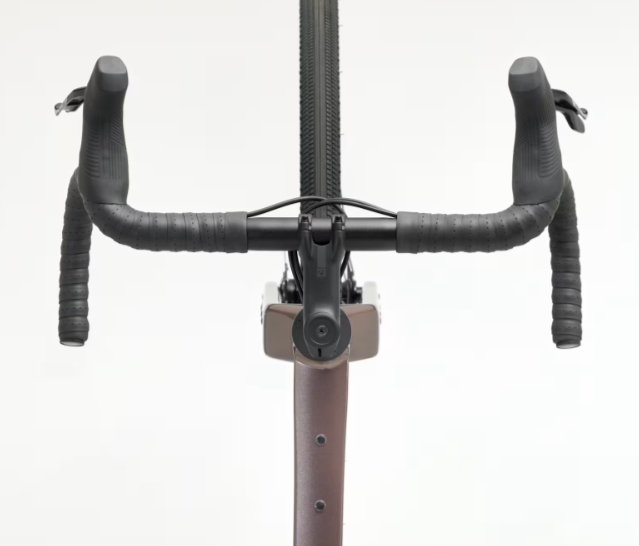

Handlebar - Bontrager Elite Gravel, alloy

Handlebar tape - Bontrager Supertack Perf tape
Stem - Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree

Brake - SRAM Apex D1 hydraulic disc, flat mount
Brake rotor - SRAM Paceline, rounded, CentreLock, 160 mm
Brake lever - SRAM Apex, 12 speed
Rotor size - Max brake rotor sizes: 180 mm front and rear
