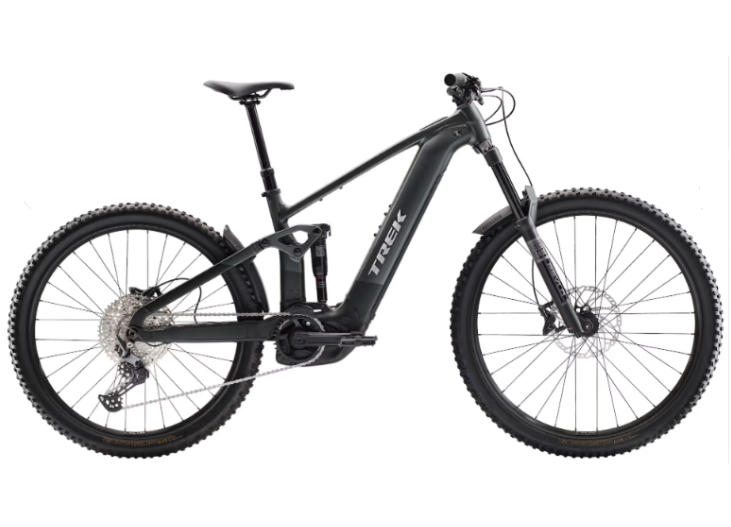

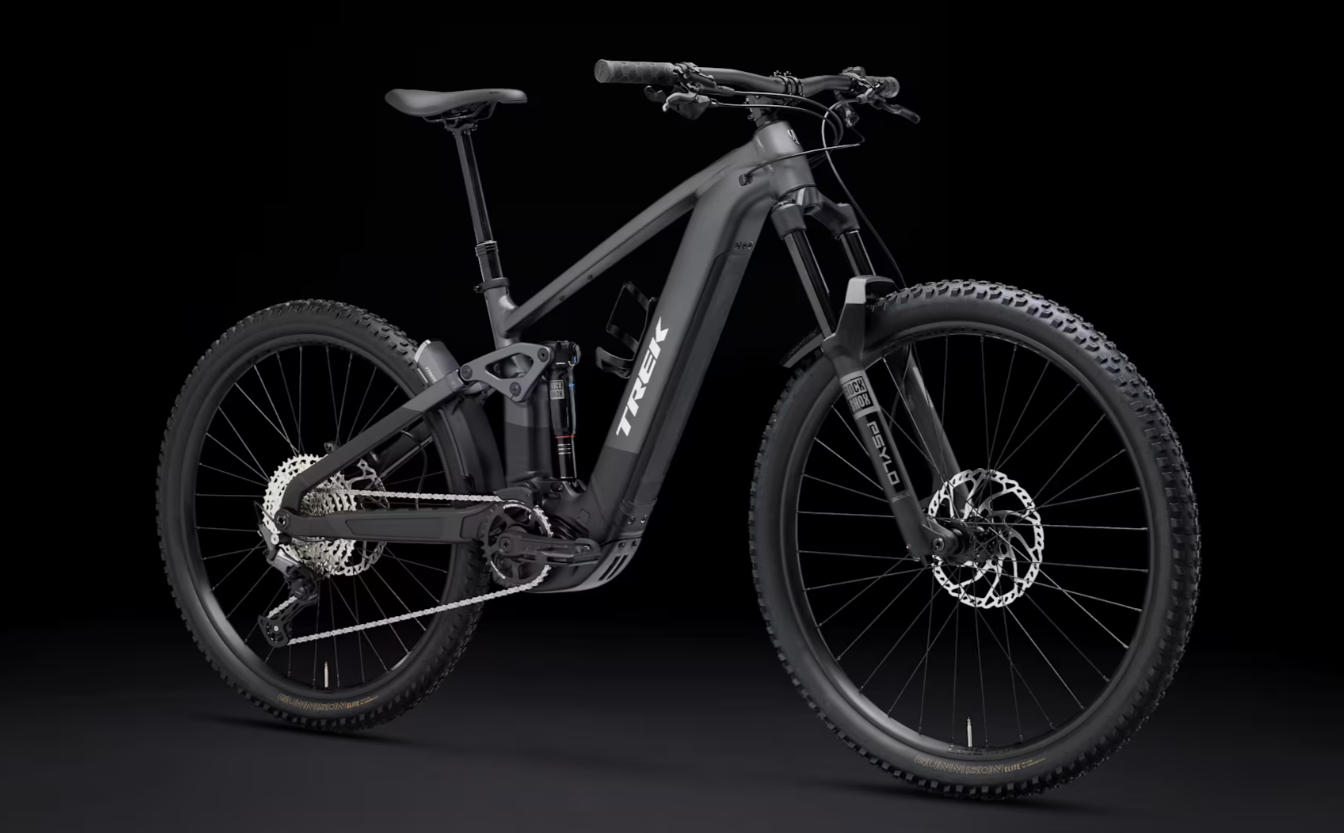

TREK Rail+ 5 Gen 5

Name: TREK Rail+ 5 Gen 5
Brand: Trek
SKU: 197216109846
Price: 9299.0 NZD
Availability: OutOfStock

$9,299.00

Tax included.

[{"id":45375613829305,"title":"Sm","option1":"Sm","option2":null,"option3":null,"sku":"197216109846","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"TREK Rail+ 5 Gen 5 - Sm","public_title":"Sm","options":["Sm"],"price":929900,"weight":24000,"compare_at_price":null,"inventory_management":"shopify","barcode":"197216109846","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45375613862073,"title":"Med","option1":"Med","option2":null,"option3":null,"sku":"197216109853","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"TREK Rail+ 5 Gen 5 - Med","public_title":"Med","options":["Med"],"price":929900,"weight":24000,"compare_at_price":null,"inventory_management":"shopify","barcode":"197216109853","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45375613894841,"title":"Lg","option1":"Lg","option2":null,"option3":null,"sku":"197216109860","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"TREK Rail+ 5 Gen 5 - Lg","public_title":"Lg","options":["Lg"],"price":929900,"weight":24000,"compare_at_price":null,"inventory_management":"shopify","barcode":"197216109860","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45375613927609,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"197216109877","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"TREK Rail+ 5 Gen 5 - XL","public_title":"XL","options":["XL"],"price":929900,"weight":24000,"compare_at_price":null,"inventory_management":"shopify","barcode":"197216109877","requires_selling_plan":false,"selling_plan_allocations":[]}]

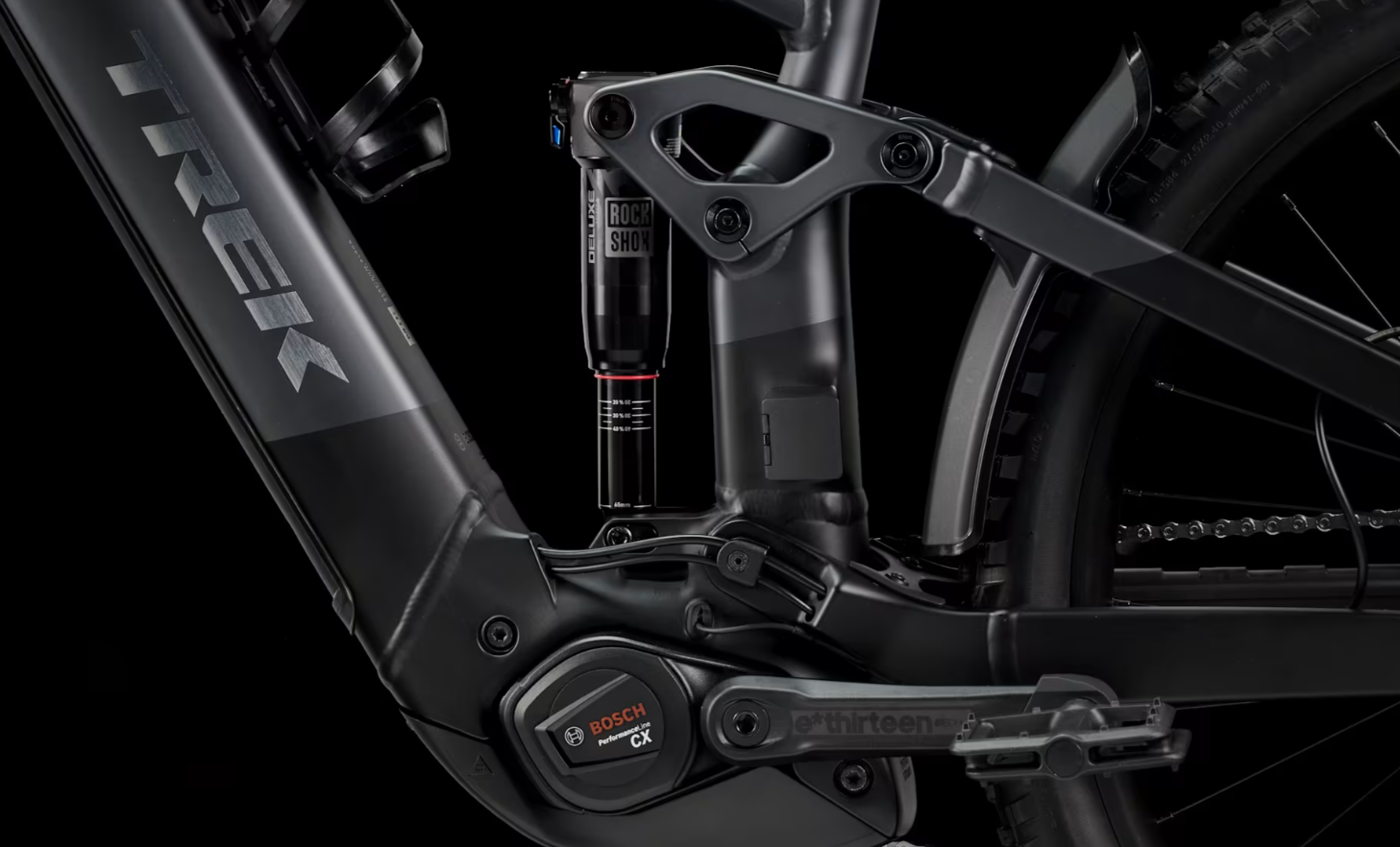

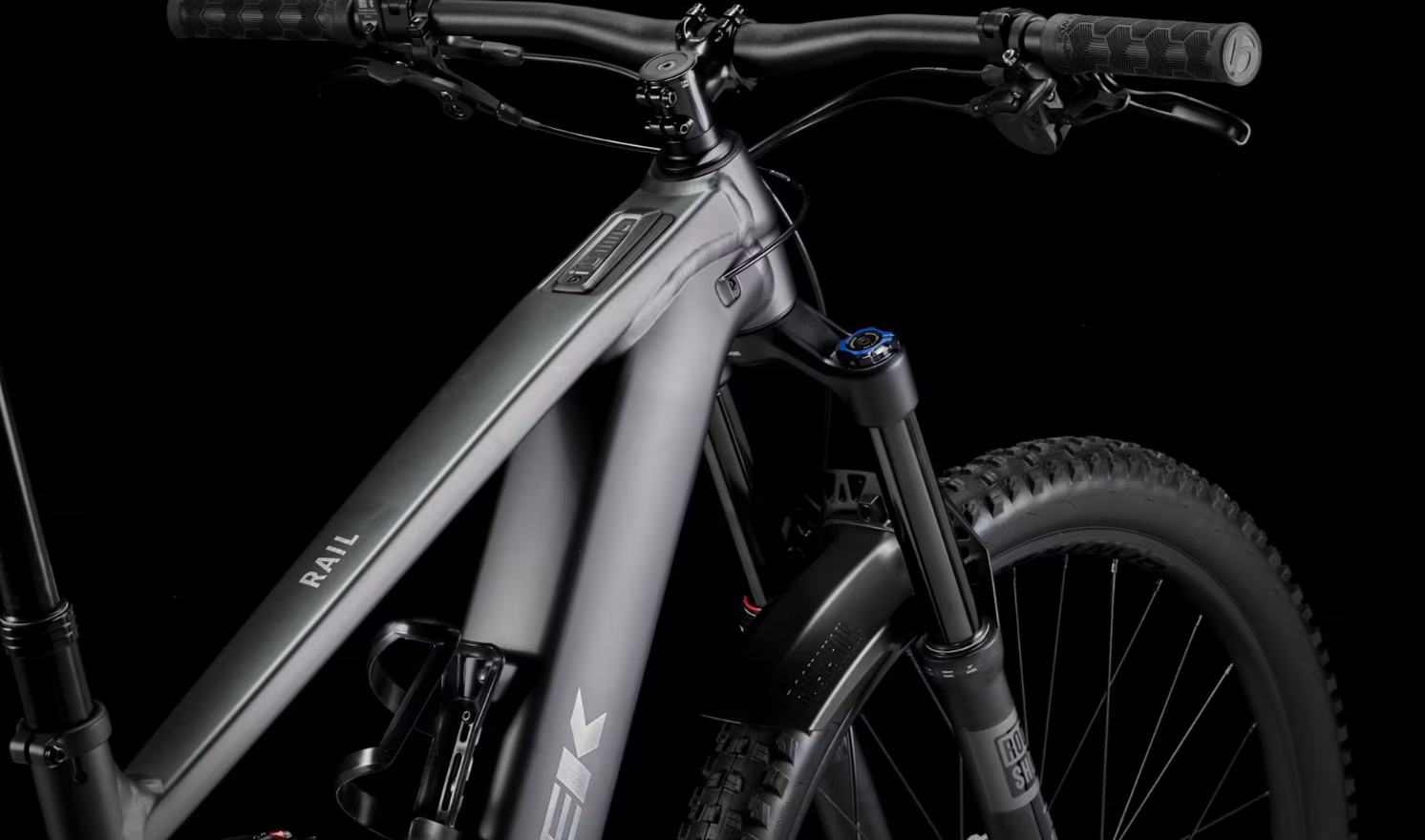

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.

https://www.youtube.com/watch?v=o7gF6O2FoCs?cc_load_policy=1&autoplay=1&modestbranding=1&hl=en&cc_lang_pref=en&rel=0&

SPECIFICATIONS:
(Subject to change from TREK without notice)
Frame - Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel

Fork - RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel

Shock - RockShox Deluxe Select+ RT, 205 mm x 65mm

Hub front - Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Hub rear - Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

Skewer rear - Bontrager Switch thru-axle, removable lever

Rim - Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve

Charger - Bosch standard 2A, 230V, smart system

Controller - Bosch System Controller BRC3100, smart system

Drive Uniti - Bosch Performance Line CX, 32 km/h max assist

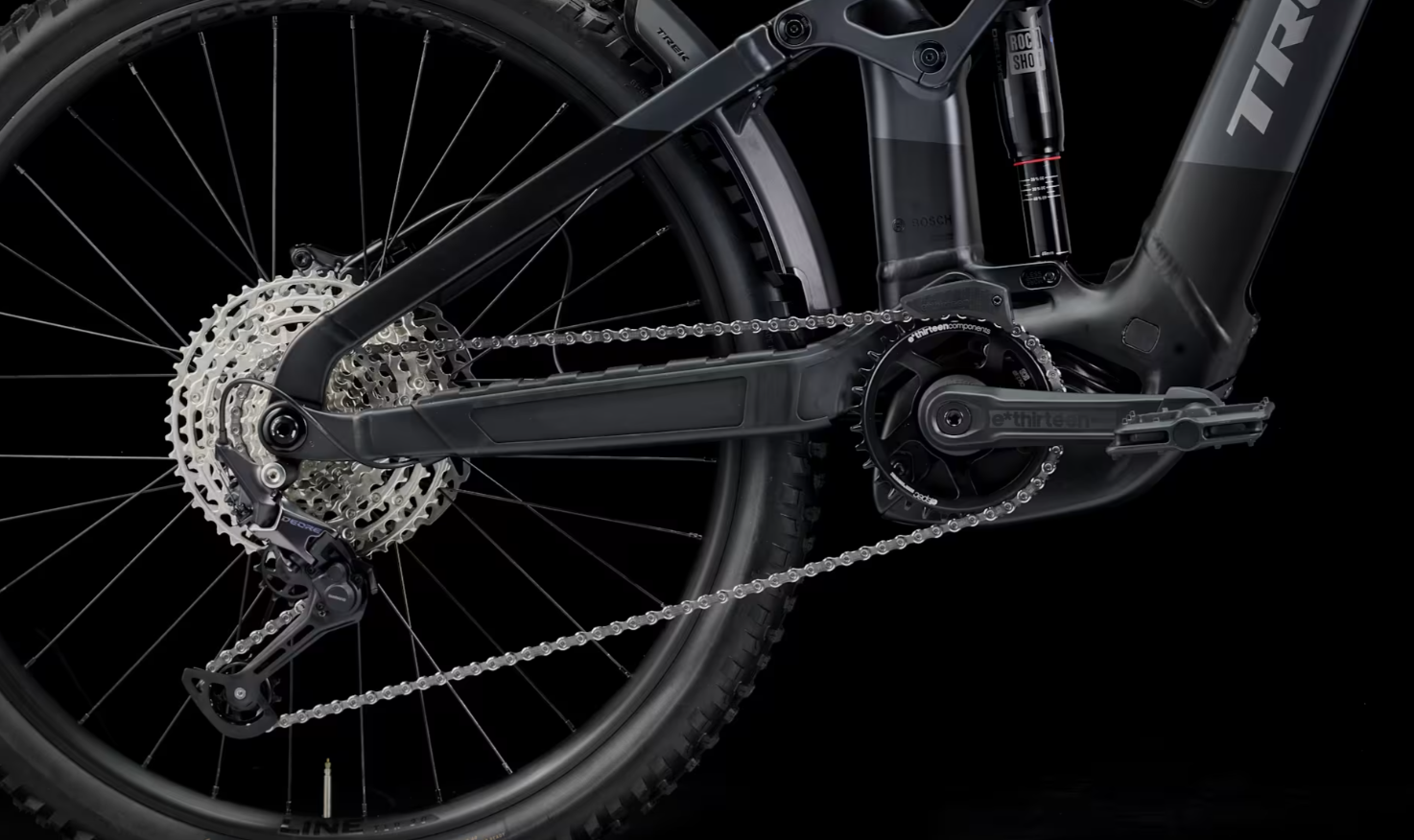

Shifter - Shimano Deore M6100, 12-speed

Rear derailleur - Shimano Deore M6100, long cage

Crank arm - E*thirteen E*spec Plus, 160 mm length

Cassette - Shimano Deore M6100, 10-51, 12-speed

Chain - Shimano Deore M6100, 12-speed

Pedal - VP-536 nylon platform

Max. chainring size - 1x: 36T

Saddle - Bontrager Verse P3, steel rails

Seatpost - Size: S - TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm
Size: M, L, XL - TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm

Handlebar - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips - Bontrager XR Trail Comp, nylon lock-on

Stem - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Head set - Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible

Brake - Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper

Brake rotor - Shimano RT66, 6-bolt, 203 mm

Weight - (M) 25.28 kg (with TLR sealant, no tubes)
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
