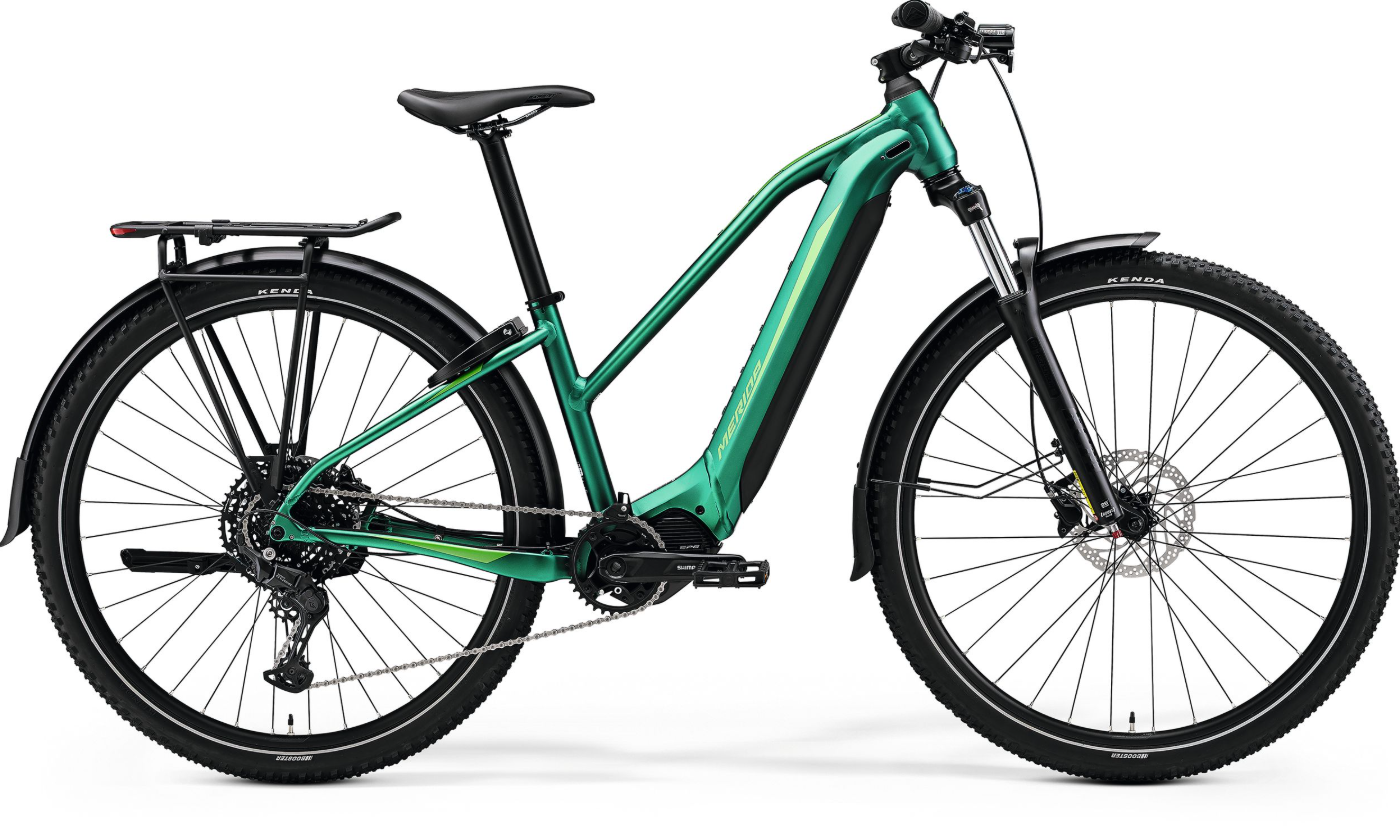

Joining together urban practicality with the willingness to explore is no easy feat, but the eBIG.TOUR 400 EQ does just that, with the new Shimano EP6 drive unit giving you smooth yet powerful assistance whenever you need it. Large volume tyres, a suspension fork and mountain bike inspired geometry deliver capable and confident handling whenever you want an adventure, but the low-step-through frame design with integrated 630 Wh battery and generous standard fit equipment including mudguards and lighting have your everyday needs covered, so there's no need to compromise.
Are practicality and excitement mutually exclusive? We don't think so - and neither does the eBIG.TOUR. It's a reliable day-to-day companion for riding to work that's equally happy taking you on big adventures off the beaten track, thanks to a winning combination of mountain bike inspired geometry with low step-through frame practicality. A powerful and smooth Shimano pedal-assist motor is integrated cleanly into the aluminium frame, while a suspension fork and high-volume tyres provide comfort and safety. Add in standard fit mudguards, racks, lighting, wheel lock and a kickstand plus long-lasting 630 or 750 Wh batteries and you'll realise you've got the best of all worlds.
FRAME | eBIG.TOUR LITE IV; MAT aluminium; 29x2.35" without fender max./ 29"x2.25" with fender max. WHS; 148x12 AST; intube |
SHOCK | |
FORK | Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset; 29x2.4" max WHS |
BRAKE-F | Shimano MT-200; 2 piston |
BRAKE-R | Shimano MT-200; 2 piston |
ROTOR-FRONT | Shimano RT30; 180 mm |
ROTOR-REAR | Shimano RTEM300; 180 mm |
CHAIN | Shimano LG500 |
CHAINGUARD | |
CRANKSET | Shimano CRE70-B; 34 ATC |
CRANK SIZE | Shimano FC-EM600; 165mm |
DERAILLEUR-FRONT | |
DERAILLEUR-REAR | Shimano CUES U6000 ; GS |
FREEWHEEL | Shimano LG300; 11-48 ATC; 10 GER |
PEDAL | VP VPE-537 |
GRIP | MERIDA EXPERT TK |
HANDLEBAR | MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB |
STEM | MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable |
STEM SIZE | 90 mm all sizes |
HEADSET | MERIDA-8155 (for the steerer 1-1/8"~1.5") |
HUB-F | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
HUB-R | Shimano TC500-HM-B; 148x12 WHR; 36 SPH; Centerlock |
AXLE-F | |
AXLE-R | MERIDA EXPERT TR; including removeable lever, 6/4mm allen key |
SADDLE | MERIDA EXPERT TK; V-mount |
SEAT CLAMP | MERIDA EXPERT |
SEAT POST | MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB |
SHIFTER-F | |
SHIFTER-R | Shimano CUES U6000-10 |
SPOKE | Black stainless |
TIRE-F | KENDA Booster; 29x2.2"; wire |
TIRE-R | KENDA Booster; 29x2.2"; wire |
CARRIER | MERIDA MA008-1 w/spring clamp + Spanninga GLOW XE |
FENDER | Sunnywheel SW-FA311-65A/ SW-FA311-65E1 |
KICKSTAND | CL-KA98, 29" |
LIGHT-FRONT | LEZYNE E-BIKE HECTO STVZO E65 |
LIGHT-REAR | Spanninga Commuter GLOW XE |
FRAME LOCK | Abus 4650SL LH-3 lock |
DRIVE UNIT | Shimano EP6; 85Nm |
DRIVE COVER | SM-DC-EP801 |
BATTERY | Shimano EN806; 630Wh |
SWITCH | |
DISPLAY | Shimano SC-EN500 |
