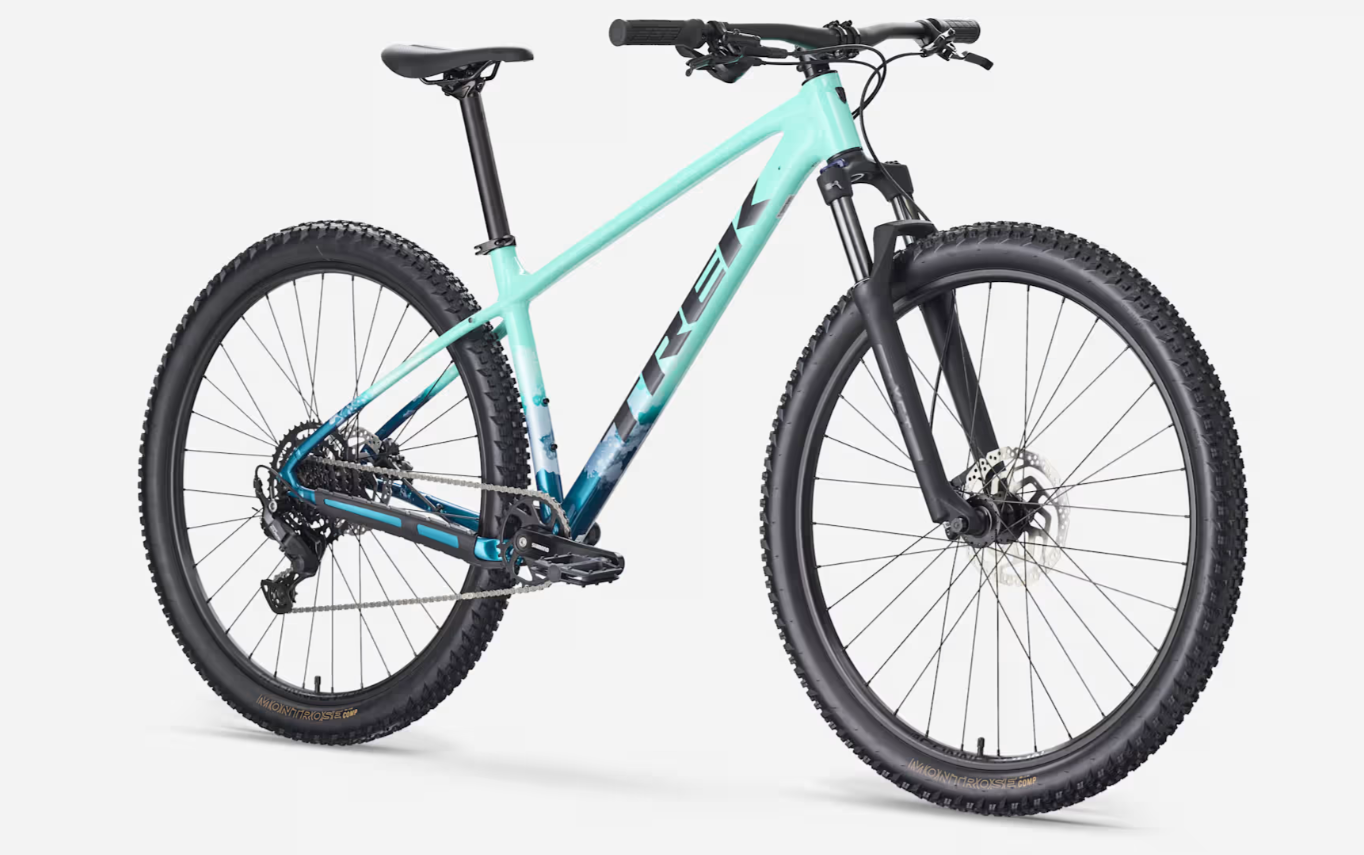

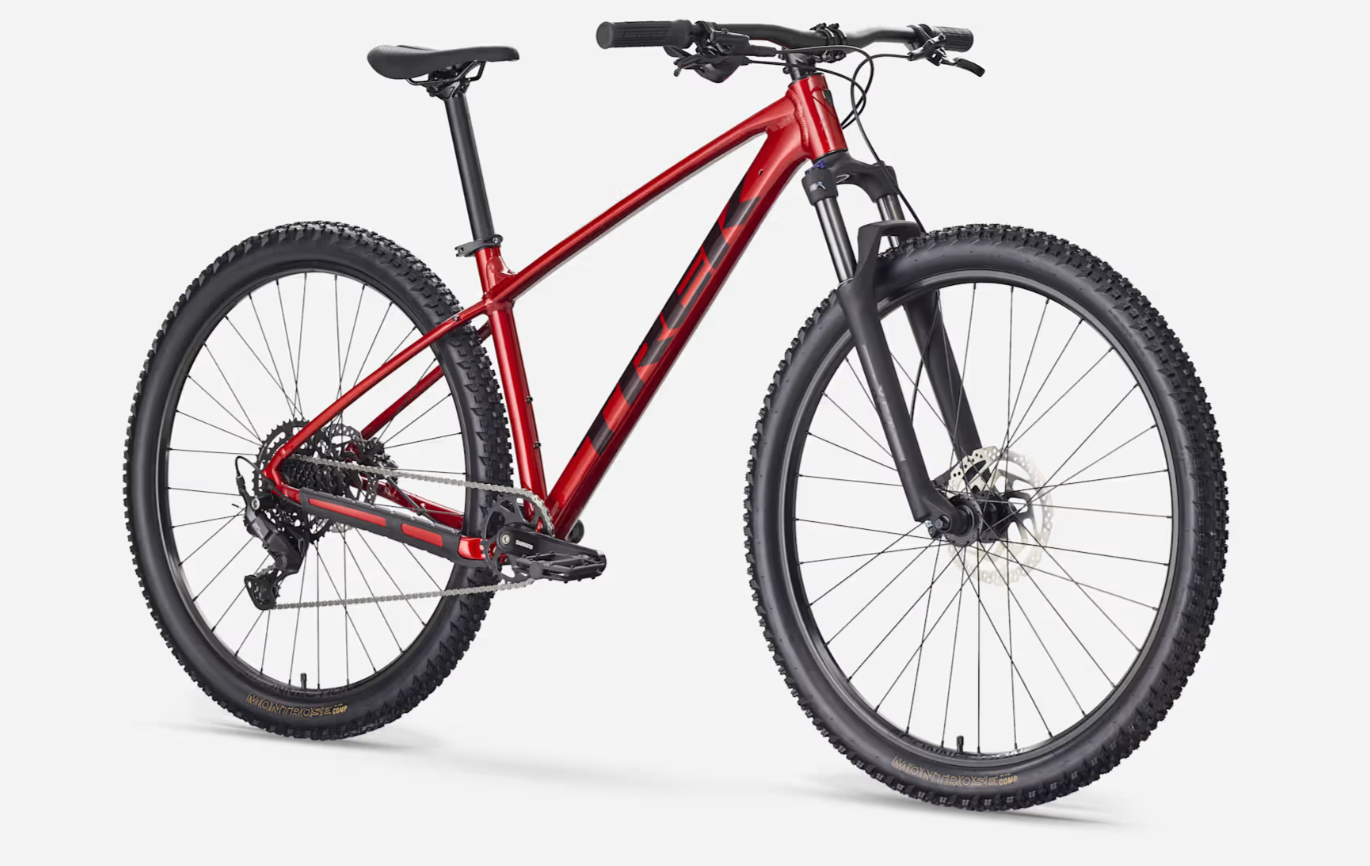

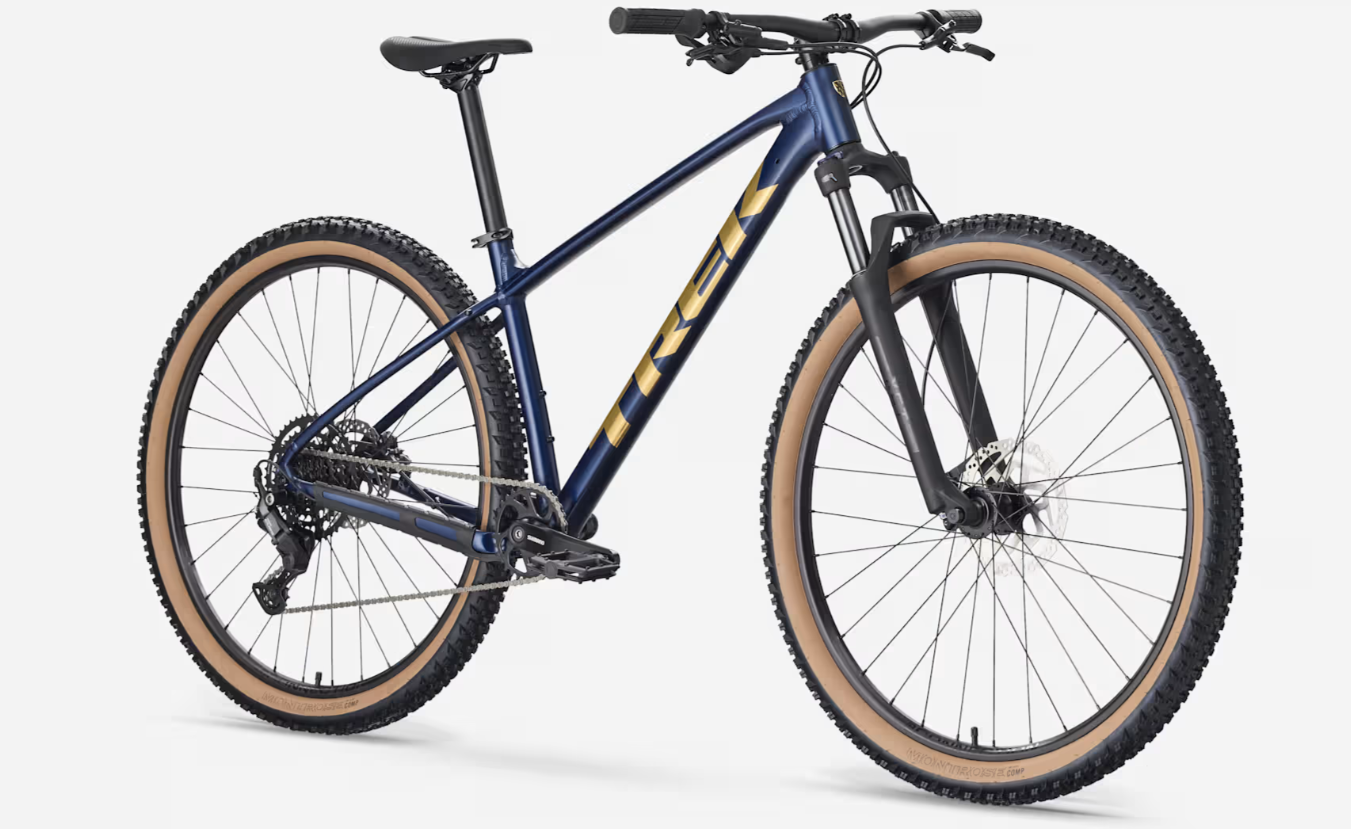

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
SPECIFICATIONS
Frame - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Rim - Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes - 14 g stainless steel, black
Tyre - Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"
Shifter - Shimano U4000, 9-speed
Rear derailleur - Shimano CUES U4000
Crank - Shimano CUES U4001, 32T, 52mm chain line, 170-175 mm length
Bottom bracket - Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette - Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain - Shimano LG500
Pedal - VP-536 nylon platform
Saddle - Bontrager Verse Short, stainless steel rails
Post - Bontrager alloy, 31.6 mm, 12 mm offset, 330 - 400mm length
Handlebar - Bontrager alloy, 31.8 mm, 5 - 15mm rise, 690 - 750mm width
Grips - Trek Line Comp, nylon lock-on
Stem - Bontrager Comp, 31.8 mm, 7-degree, 35 - 70mm length
Head set - Semi-integrated, 1-1/8"
Brake - Shimano MT200 hydraulic disc
Brake rotor - Shimano RT26, 6-bolt, 160-180mm
Brake Set - Shimano MT200 hydraulic disc
Weight M = 15.10 kg
Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
