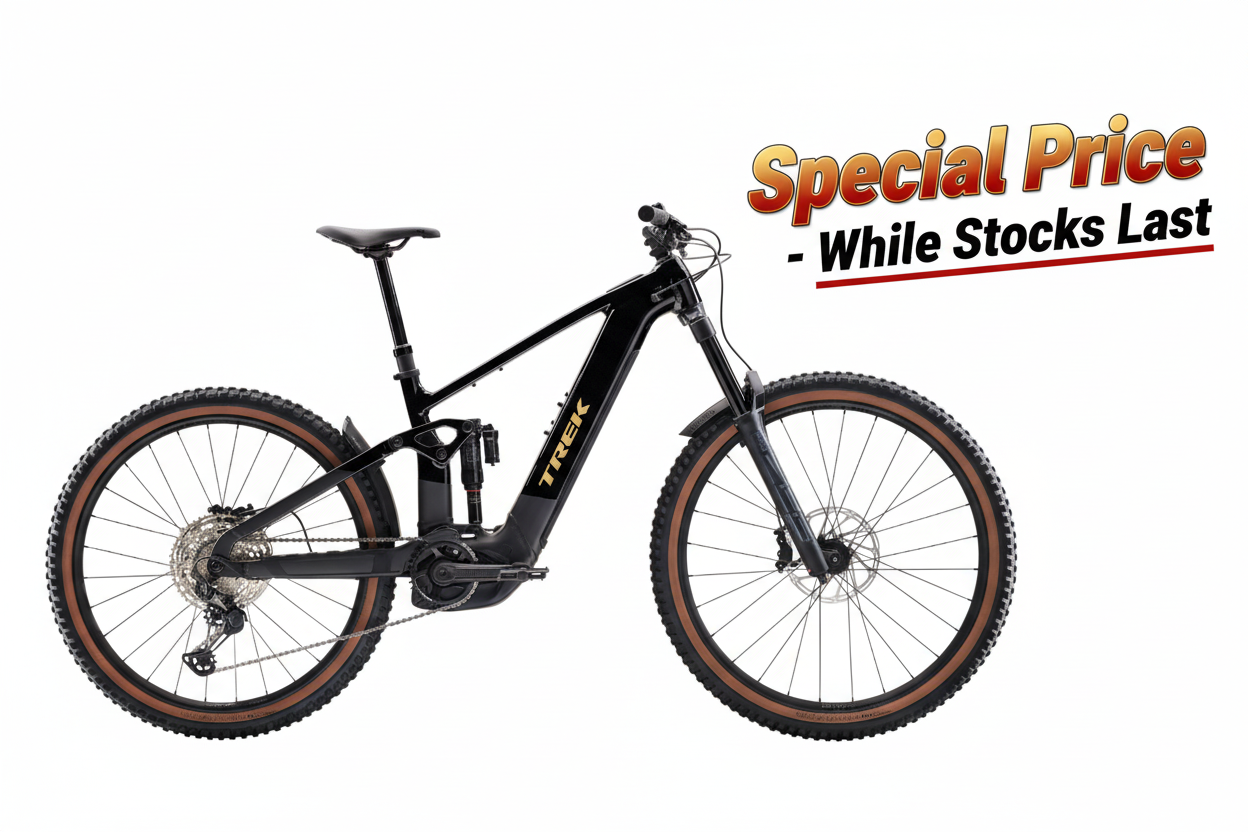

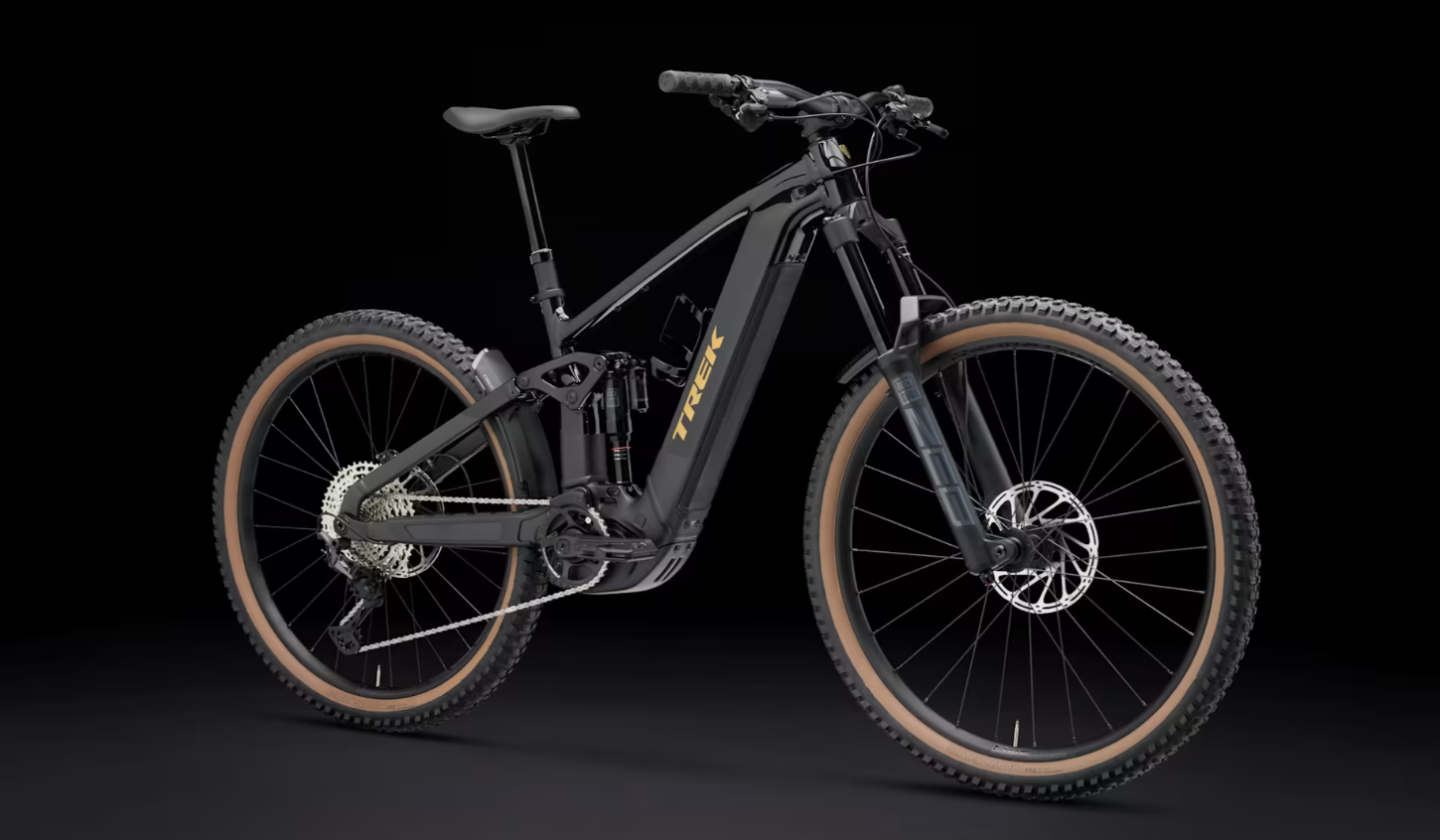

2026 TREK Rail+ 8 Gen5

The Rail+ 8 is an aluminium enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminium frame paired with a RockShox Super Deluxe+ shock and ZEB Select fork (160 mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post and tubeless-ready Bontrager Line TLR 30 wheels.

You want a bike that maximises the fun and is up for gnarly rides that get you off the grid or just hammering in an extra lap or two. You need the capability of an enduro bike for pointing it down the rough and rowdy, and love the feeling of full assist taking the sweat out of the climb back to the top for more

An Alpha Platinum Aluminium frame with a Bosch Performance CX system (85 Nm, 250 W) and 800 Wh Removable Integrated Battery 2.0. A 160 mm RockShox ZEB Select fork with DebonAir spring, Motion Control damper and lockout and a RockShox Deluxe Select+ RT shock. All topped off with a Shimano XT and SLX blended 12-speed drivetrain, dropper post, Bontrager Line Comp 30 Tubeless Ready wheels and 4-piston Shimano hydraulic disc brakes.

The Rail + 8 is an enduro e-MTB dialled for big adventures. It packs in capable, adjustable geometry, a massive battery and a powerful motor to get you wherever you want to go. An upgraded drivetrain balances price and performance for a ride that's ready for anything.

The Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps

The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents

You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability

Want even more boost? With the Bosch e-Bike Flow app, you can increase torque to 100 Nm and peak power up to 750W.

The massive 800 Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage, and is compatible with PowerMore for even bigger rides

Specifications

Frame    Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel////
Frame Material    Aluminum

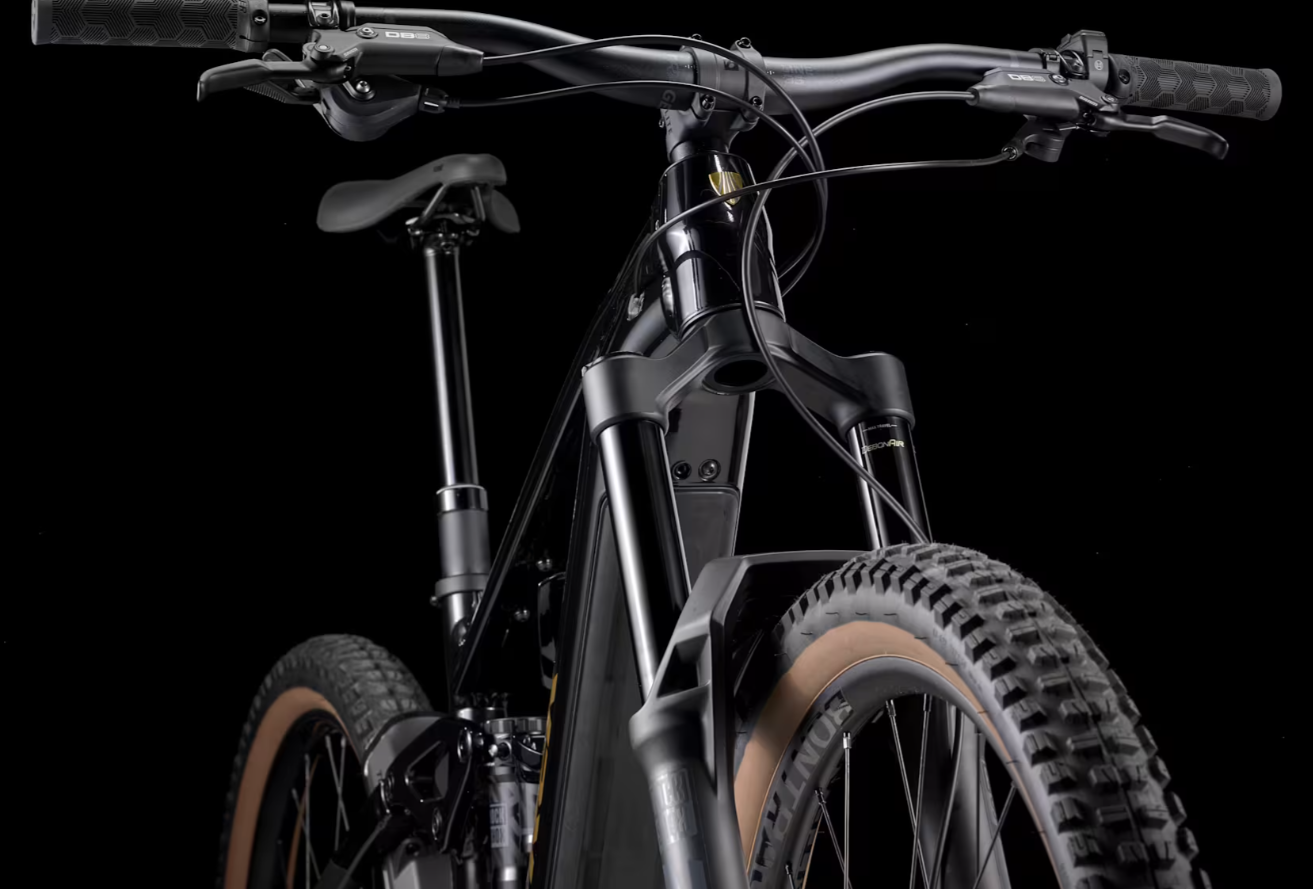

Fork    RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel // RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel

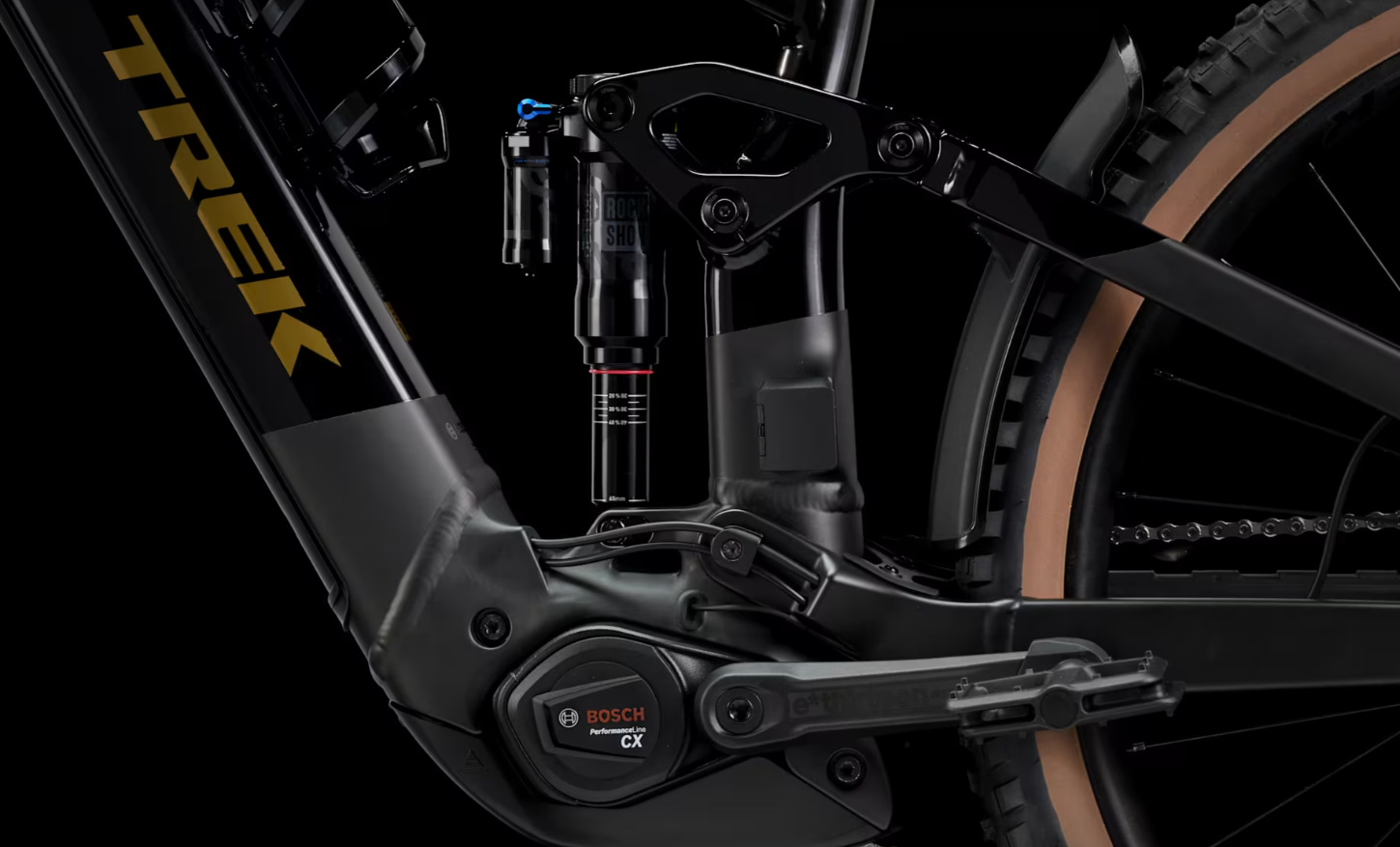

Shock    RockShox Super Deluxe Select RT, 205mm x 65mm
Wheel (front)    Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel (rear)    Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 27.5"
Tire    Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Rim Size    27.5"/29"
Tire Part    Bontrager TLR sealant, 180 ml/6 oz
Skewer (rear)    Bontrager Switch thru-axle, removable lever
Shifter    Shimano SLX M7100, 12-speed

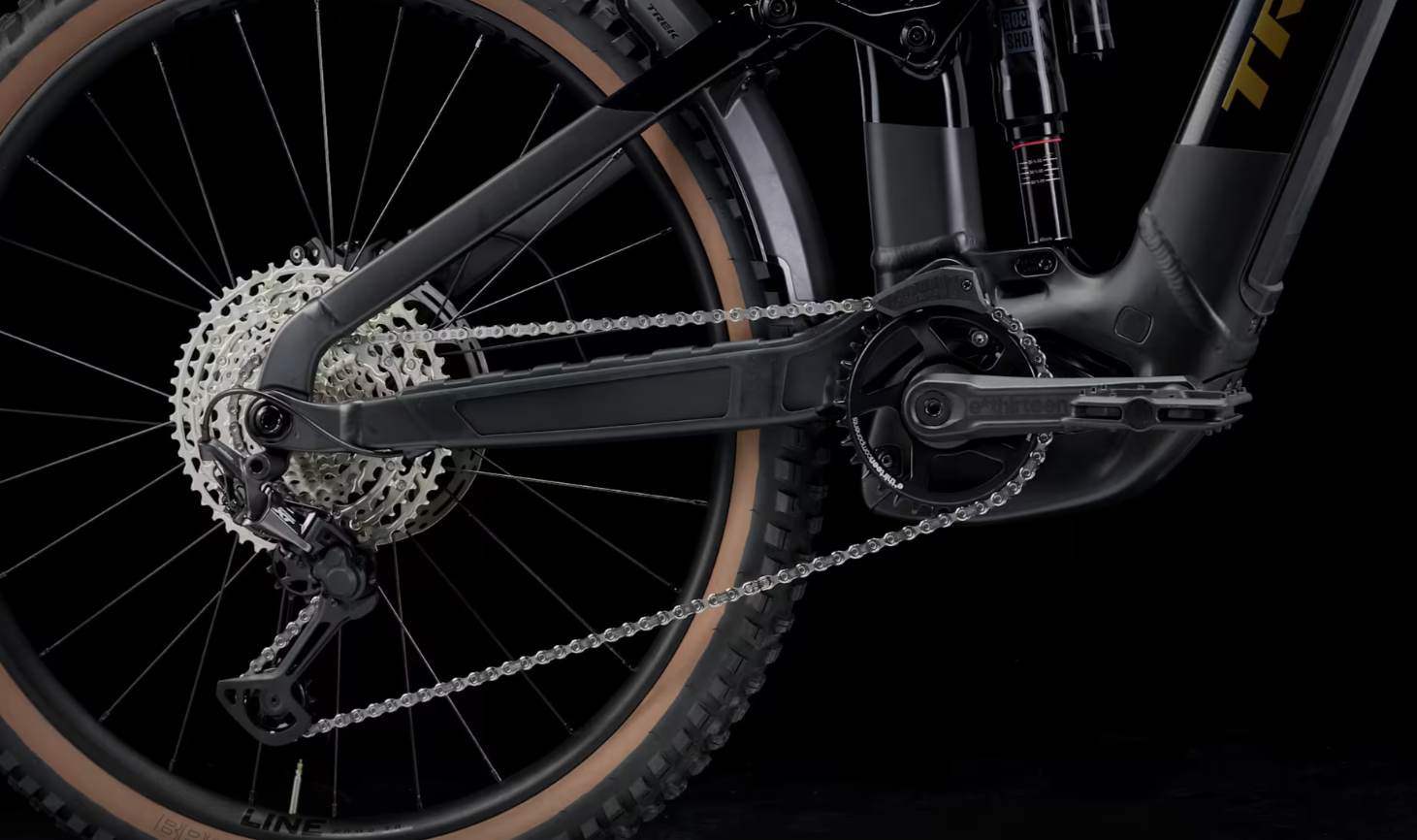

Rear Derailleur    Shimano XT M8100, long cage
Crank Arm    E*thirteen E*spec Plus, 160 mm length
Cassette    Shimano Deore M6100, 10-51, 12-speed
Chain    Shimano SLX M7100, 12-speed
Brake    SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc
Brake Rotor    SRAM CentreLine, 6-bolt, round-edge, 200 mm
Pedal    VP-536 nylon platform
Saddle    Bontrager Verse P3, steel rails
Seatpost    Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Handlebar    Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Stem    Bontrager Elite, 35 mm, 0-degree, 45 mm length
Headset    Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Grips    Bontrager XR Trail Comp, nylon lock-on
Fender    // Trek 27.5" custom fender
Battery    Bosch PowerTube 800 Wh, smart system

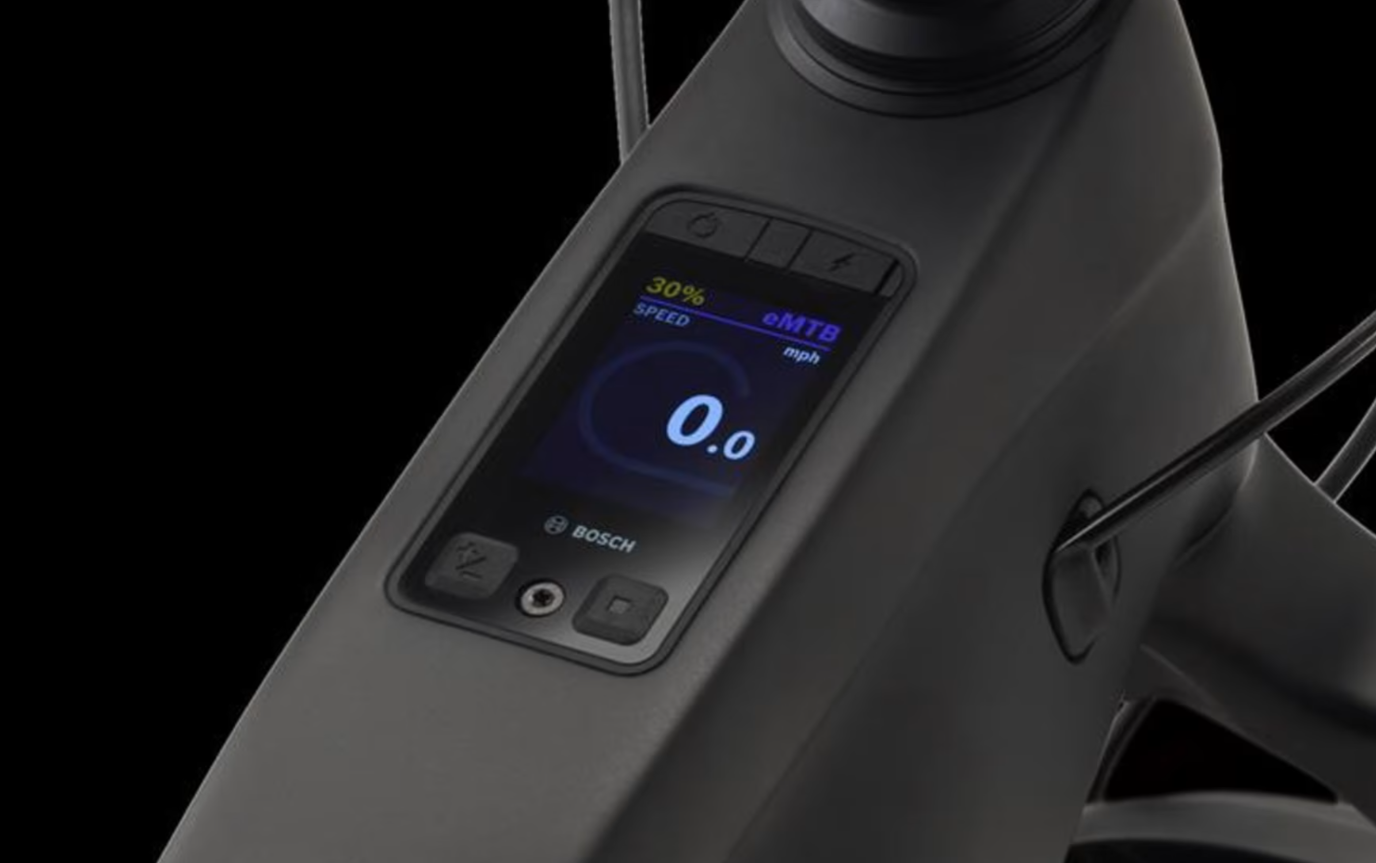

Controller    Bosch System Controller BRC3100, smart system
Motor    Bosch Performance Line CX, 20 mph / 32 km/h max assist
Charger    Bosch standard 4A, 230V, smart system
Weight    M – 25.08 kg/55.3 lb (with TLR sealant, no tubes)
Weight Limit    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
