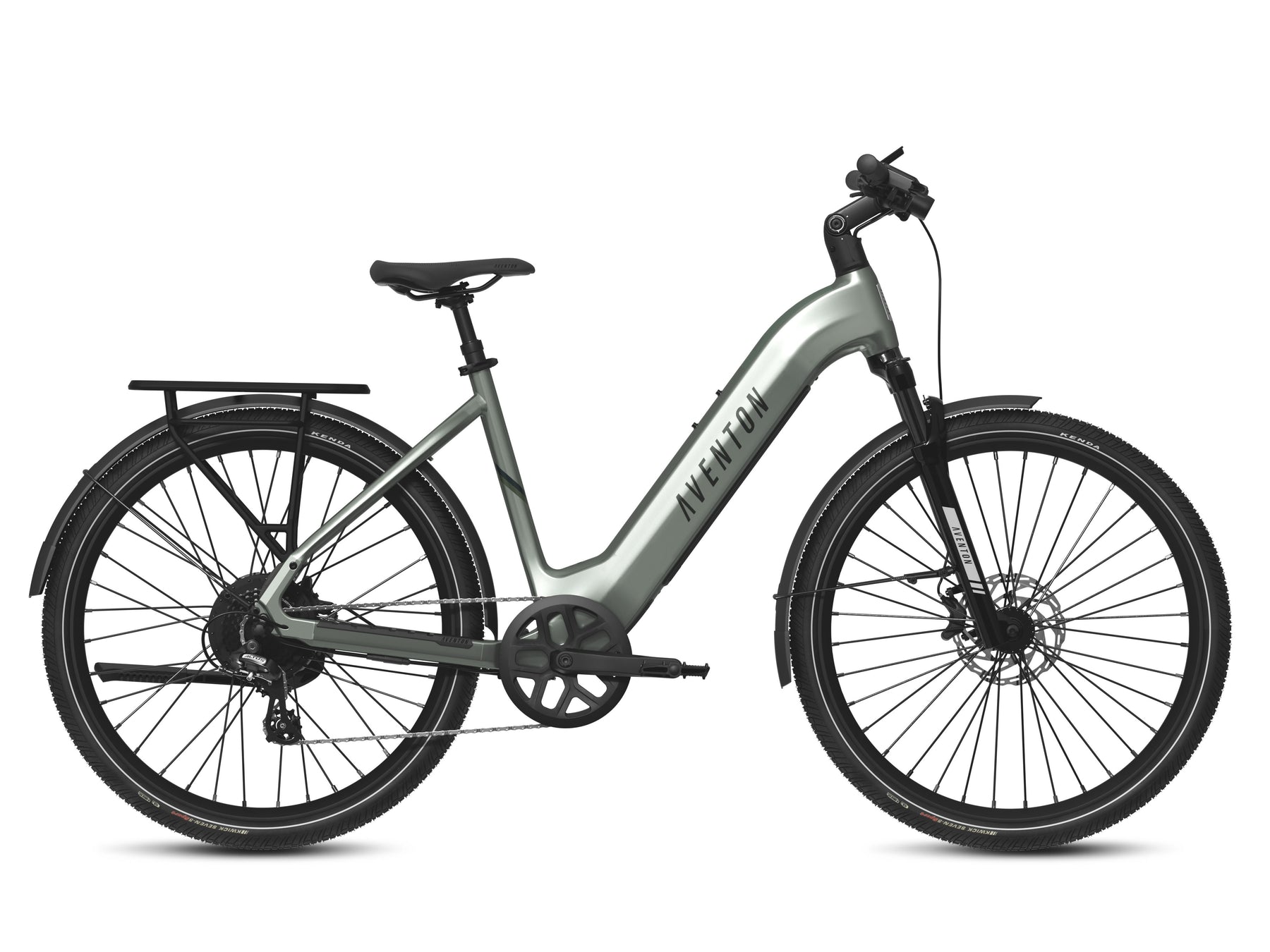

Aventon Level 3 Step Thru

From the USA's #1 e-bike brand, take your commutes to the next LEVEL. The all-new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensure you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities allows user adjustments. Built-in indicators provide better safety when riding around town. Ditch the traffic, and elevate your daily commutes with the Level 3. connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date.

TOP SPEED 32 kph on Throttle 45 kph on Pedal Assist

MOTOR 300W torque sensing hub drive

THROTTLE Aventon LH Handlebar Mounted

BATTERY Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

MAX. RIDER WEIGHT 136 kg

RECOMMENDED RIDER HEIGHT 5'3" - 6'4" (160 - 195 cm)

TYRES Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 tyres

BRAKES Magura AT-2 Hydraulic disc brakes, front and rear

WATER RESISTANCE IPX6

CHARGER 36V Output: 42V/ 4A, 5 hours charging time

CLASS Class 2 Ebike

FRAME 6061 Aluminum, Gravity Cast Front Triangle

CHAIN 7/8 speed 120L

FORK Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset

REAR SPACING 142mm

FORK SPACING 110mm

FRONT WHEEL 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black

REAR WHEEL 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black

DISPLAY Aventon BC280

BATTERY WEIGHT 3.9 KG

SENSORS Double Sided Bottom Bracket Torque Sensor

LIGHTS Front and rear lights integrated

REAR DERAILLEUR Shimano Altus RD-M310

SHIFTER Shimano 8 Speed Trigger SL-M315-8R

CASSETTE 12-32T / 8 Speed Shimano CS HG200-8

CHAINRING 48T

CRANKSET 3pc, 170mm crank arm

BOTTOM BRACKET Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

PEDALS 9/16" Composite Platform

SADDLE Aventon Saddle

SEATPOST 30.9mm Aventon Suspension Seatpost with 50mm travel

HANDLEBARS Aluminum 31.8mm, 680mm

GRIPS Aventon Lock on grips

HEADSET Sealed Bearing Headset

FENDERS Included

REAR RACK Included (27 KG weight limit)
